Track & capture vehicle speeds

And get notified when cars are speeding in your neighborhood.

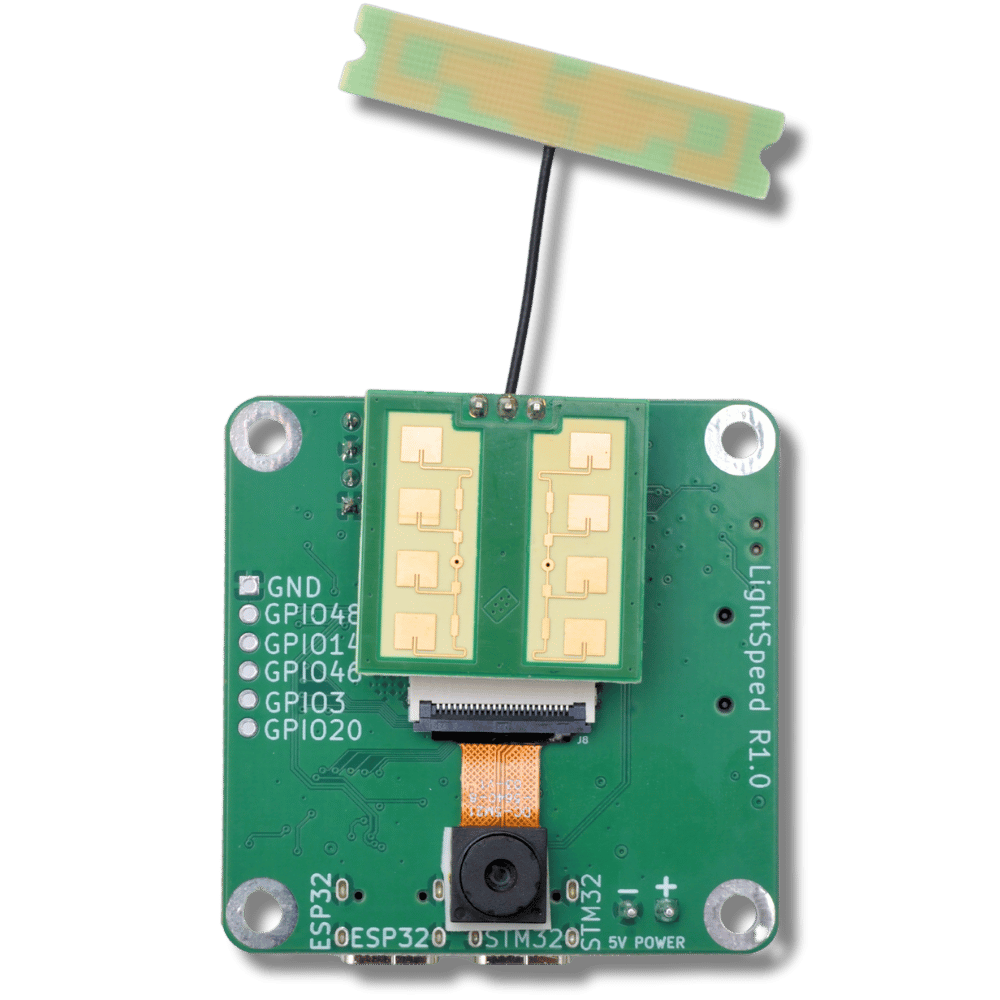

MiniSpeedCam board with radar module, camera and antenna

Introducing MiniSpeedCam

100% Open Source

Learn more:

GitHub

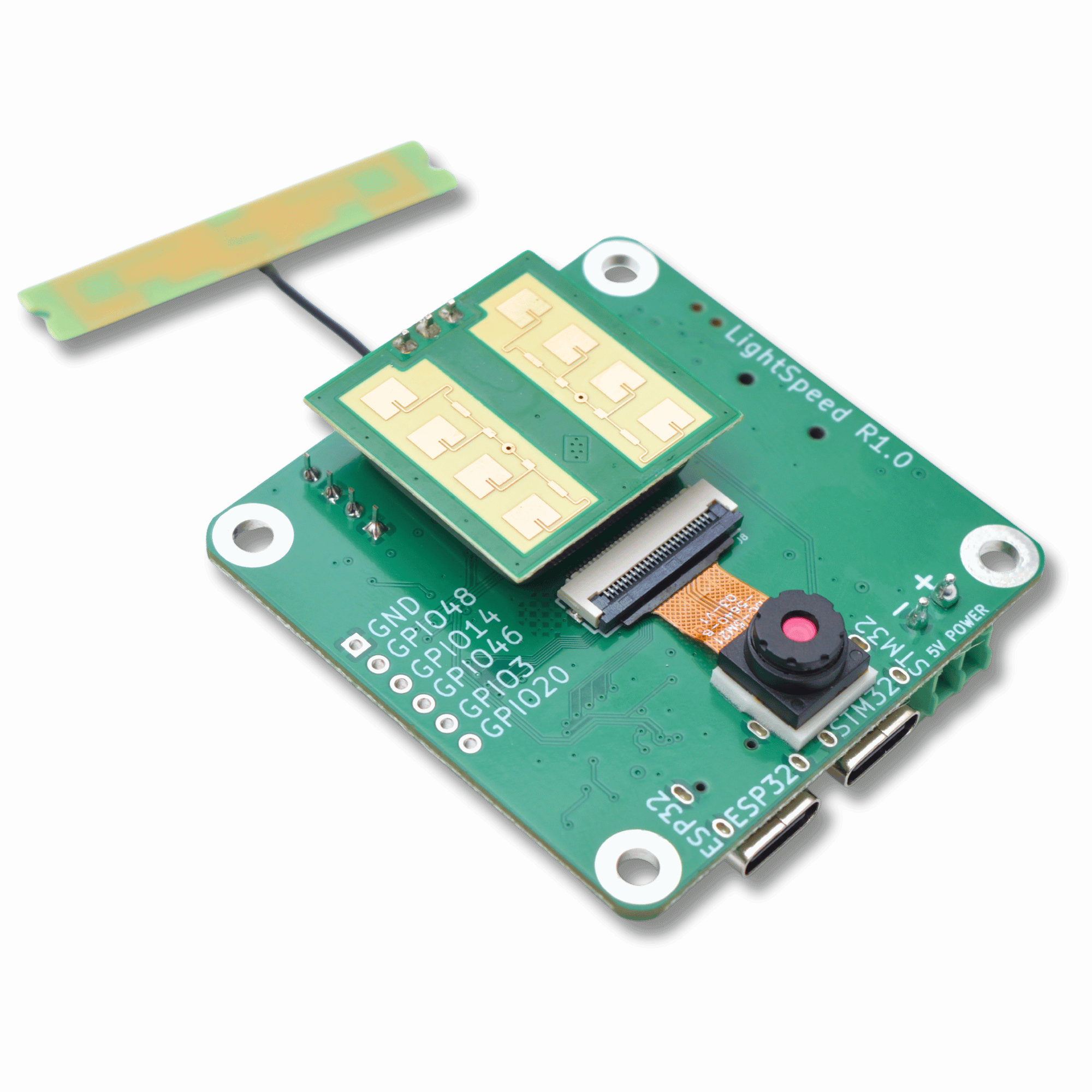

MiniSpeedCam board

BENEFIT

Capture Vehicle Speeds

100% Automatic radar, camera, and upload.

  • Radar Module

    The radar automatically tracks and detects vehicle speeds.

  • Camera

    If the speed threshold is crossed, the camera takes a photo.

  • WiFi

    Speed data and photo are uploaded to a server over WiFi.

  • Cloud viewer

    View all speed data and photo from any location, just log into to this website.

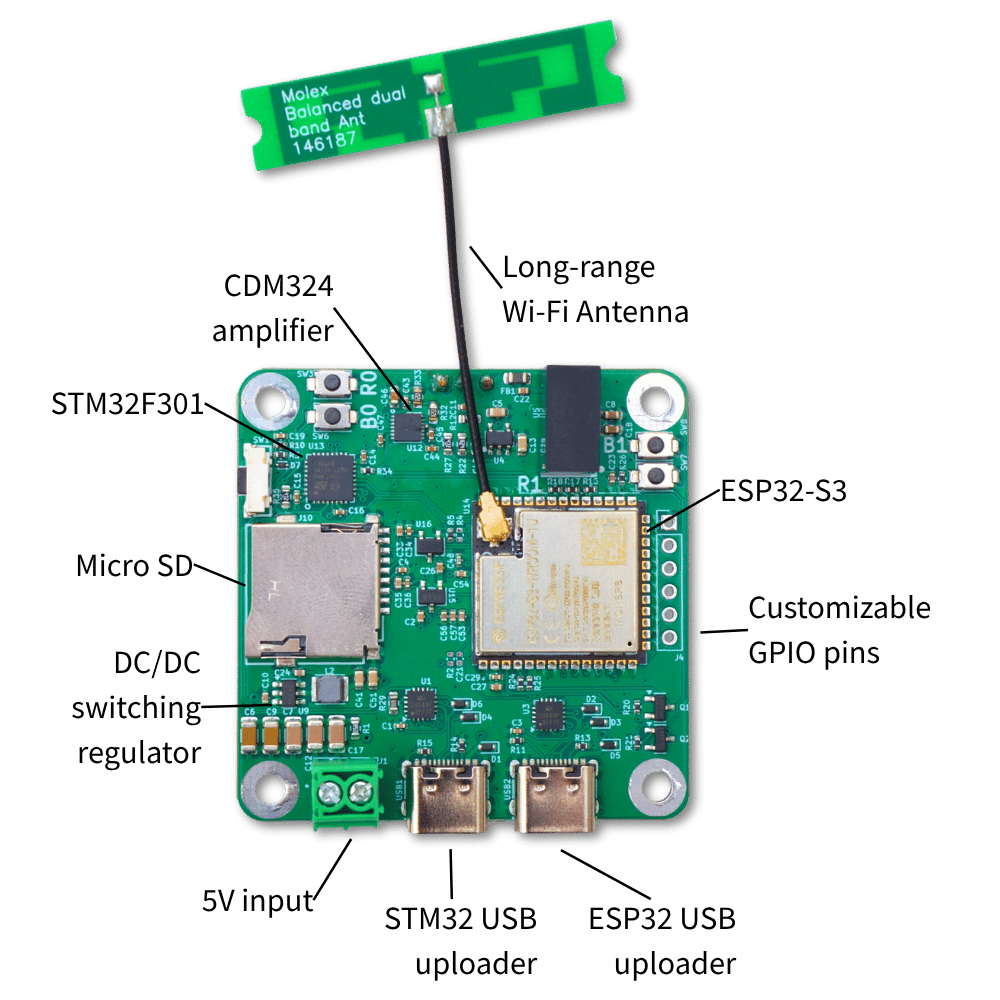

Annotated MiniSpeedCam board

FEATURE

100% Open- Source

Available on GitHub.

  • Firmware

    ESP32 and STM32 code is available and easy to upload with the USB programmers.

  • Schematic

    KiCad and PDF schematics are available.

  • Board files

    All board files are available in KiCad format.

MiniSpeedCam board

BENEFIT

Cloud Capture

MiniSpeedCam automatically uploads your speed data and photos to this website, and easily view from any internet-connected device.

  • Easy

    Don't waste time setting up a server, get started right away.

  • Speed data

    Export all speed data into a CSV file (coming soon).

  • Photos

    Easily download photos of cars that are caught speeding.

Photos

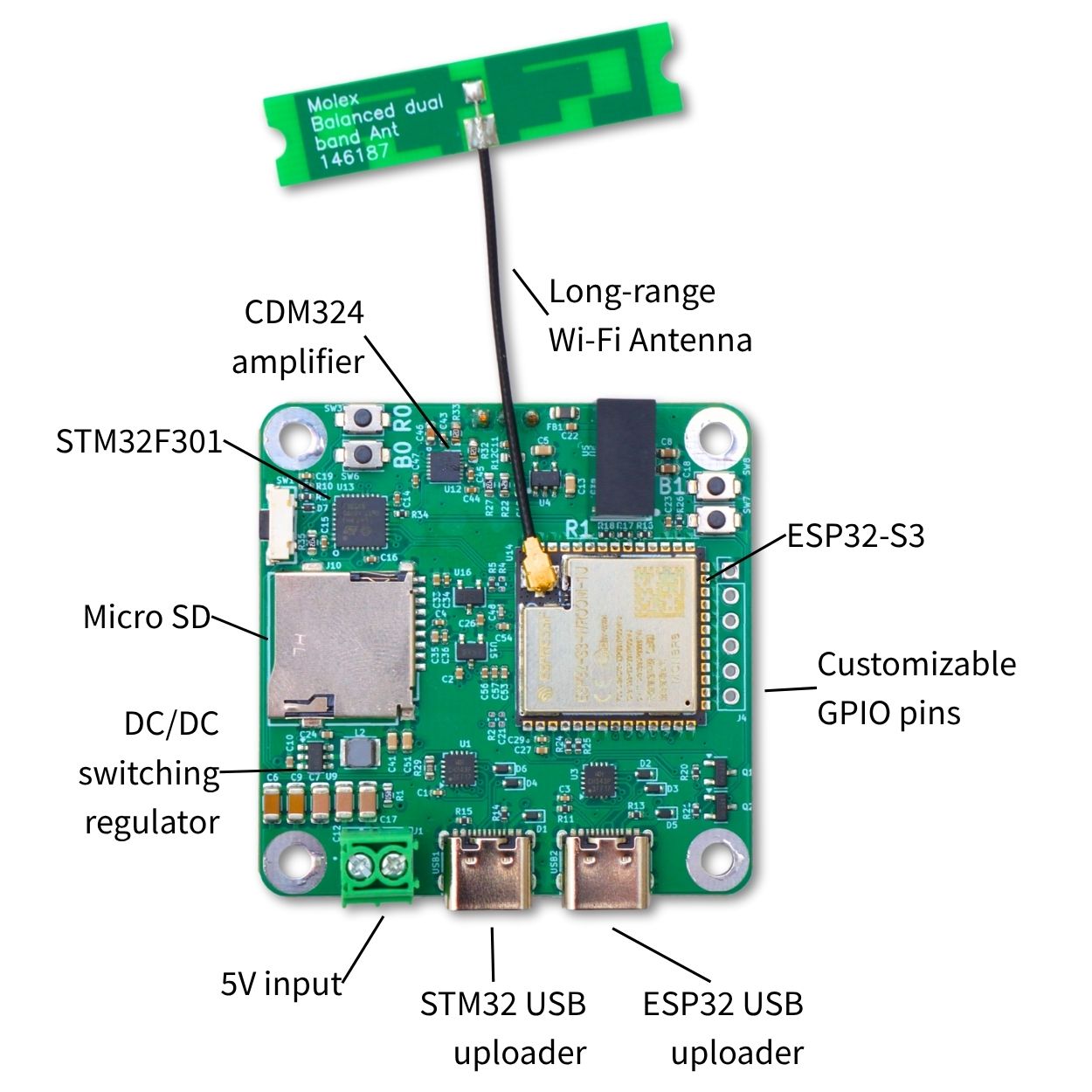

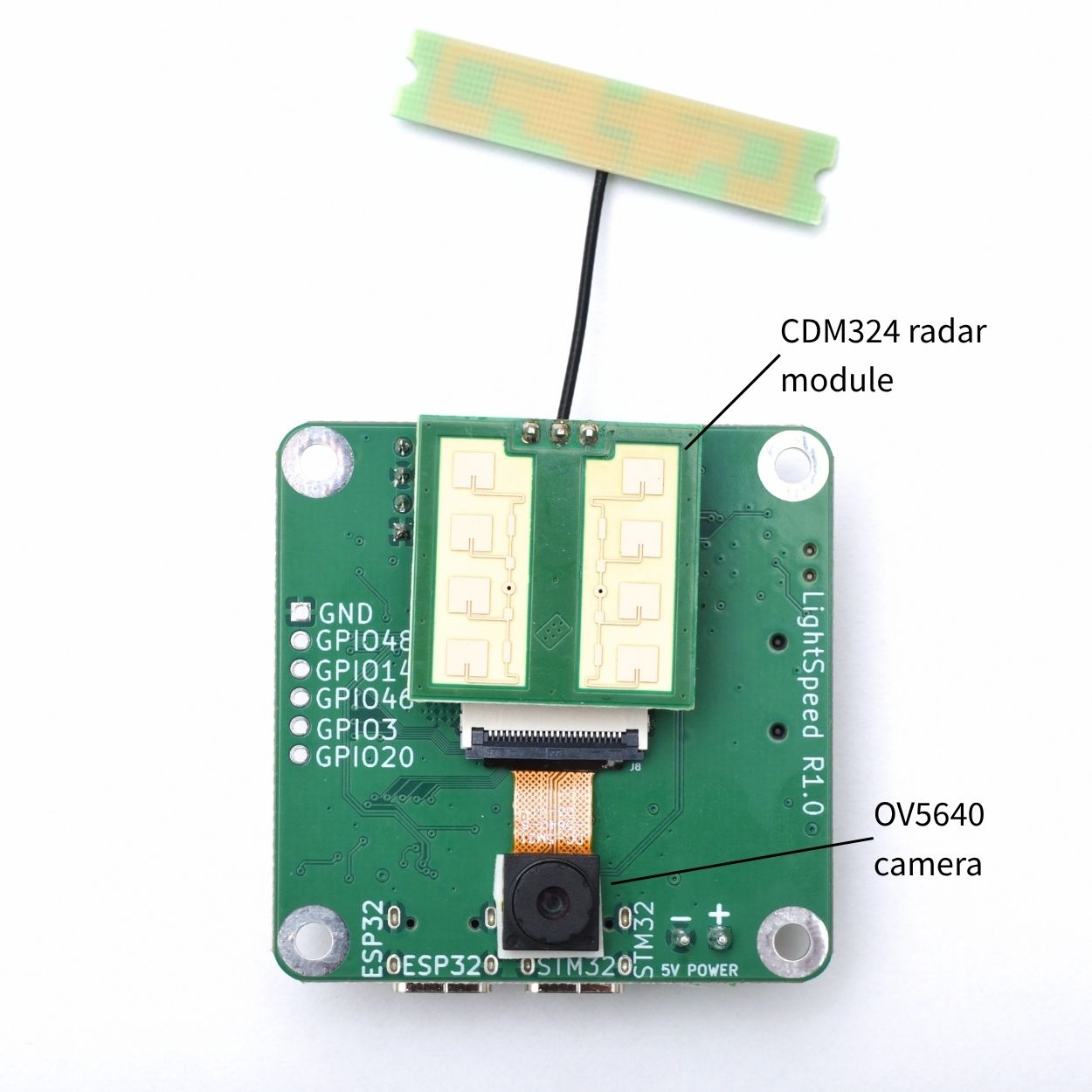

Top view of the MiniSpeedCam board with components labelled MiniSpeedCam board with the CDM324 radar module and OV5640 camera labelled

Cloud Capture Pricing

Completely free if you purchase a MiniSpeedCam. Cloud Capture is optional, the MiniSpeedCam can send data to any location you want. But if you don't want to set up a server, or edit any code, we'll do it all for you.
